[Python] Plotly 축 반전, x축 y축 반전 뒤집기 본문
반응형
Y축 반전 뒤집기

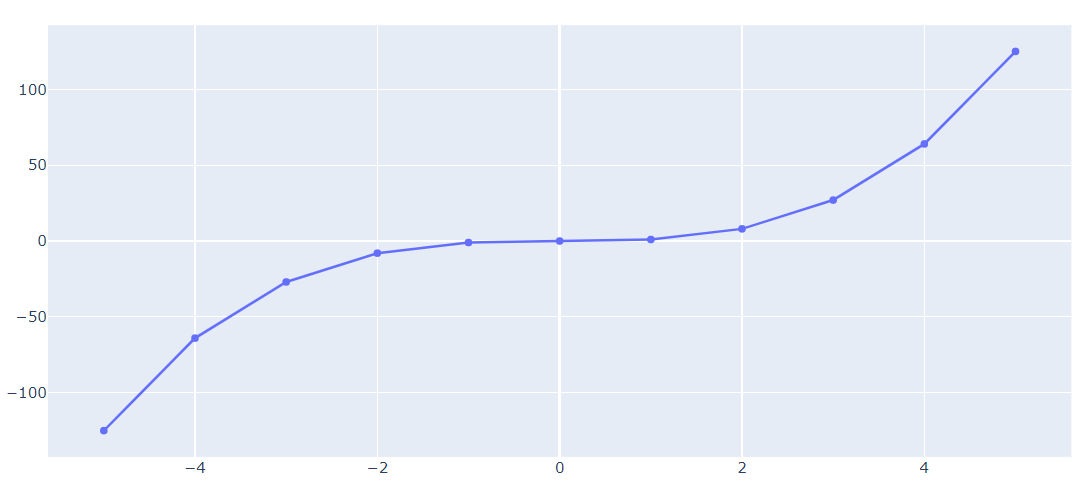

기본 수식 작성
import plotly.graph_objects as go
import numpy as np
x = np.arange(-5, 6)
y = x**3
fig = go.Figure(data=go.Scatter(x=x, y=y))
fig.show()

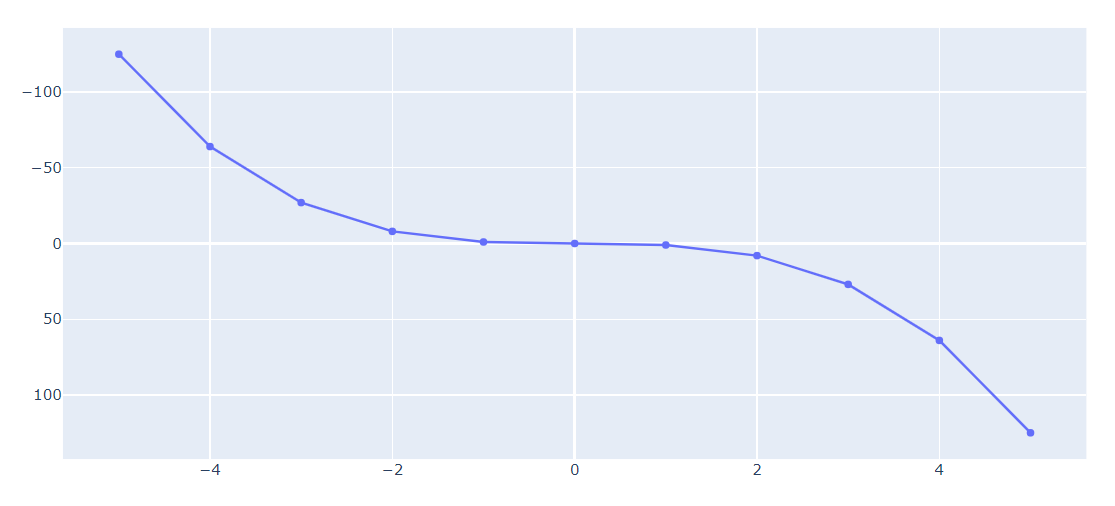

축 반전
fig.update_layout(
yaxis = dict(autorange='reversed'),
)
update_layout
에서 자동 범위 설정을 reversed
로 설정하면 반전이 수행됩니다.
x 축은 xaxis
로 설정해서 하면 동일하게 적용할 수 있습니다.
전체 소스 코드
import plotly.graph_objects as go
import numpy as np
x = np.arange(-5, 6)
y = x**3
fig = go.Figure(data=go.Scatter(x=x, y=y))
fig.update_layout(
yaxis = dict(autorange='reversed'),
)
fig.show()
